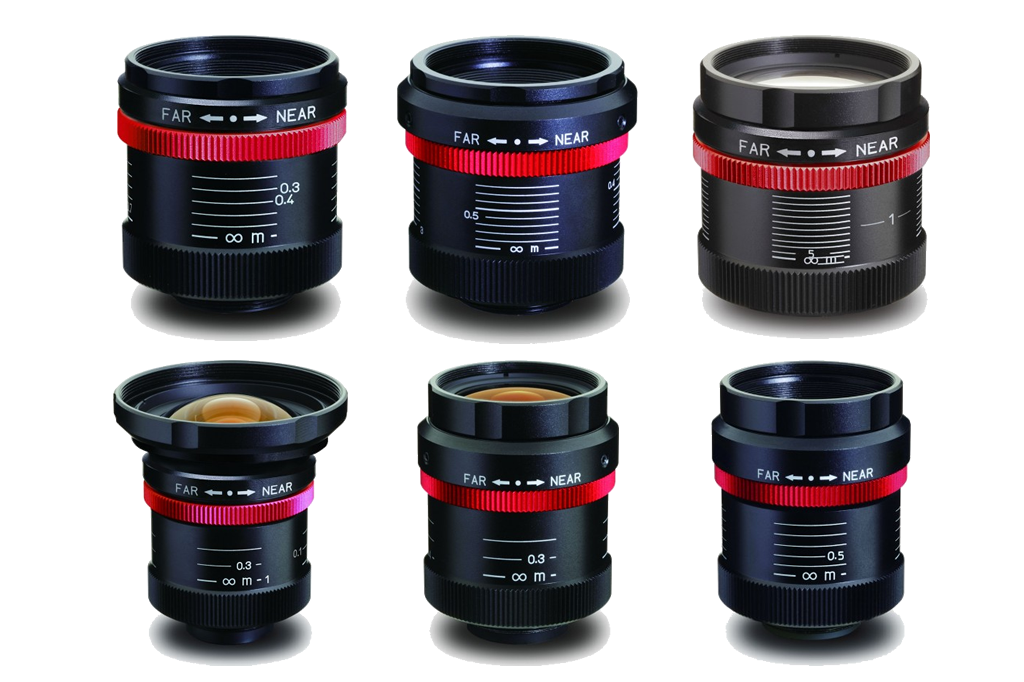

1" Anti-Shock & Vibration HC-V Series

MACHINE VISION &

FACTORY AUTOMATION LENSES

● LM8HC-V/LM12HC-V/
LM16HC-V/LM25HC-V/
LM35HC-V/LM50HC-V,
Megapixel Lens
Interchangeable iris plates
Two way reversible nut for focus adjustment
All internal lens elements glued
Metal mount
Metal housing
Kowa’s new HC-V series is made for use in high vibration and high shock environments. With a design based on Kowa’s standard 1 inch HC lenses this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two way reversible nut is utilized to tightly lock the focus adjustment ring in place. Interchangeable iris plates which can be glued are used to select the F-stop.

Model Number	Lens Format	Focal length	Iris Range	Mount	Data Sheet
LM8HC-V	1" (12.8 x 9.6 x 16mm)	8mm	F1.4/F2.8/F4/F8	C-Mount	PDF
LM12HC-V	1" (12.8 x 9.6 x 16mm)	12.5mm	F1.4/F2.8/F4/F8	C-Mount	PDF
LM16HC-V	1" (12.8 x 9.6 x 16mm)	16mm	F1.4/F2.8/F4/F8	C-Mount	PDF
LM25HC-V	1" (12.8 x 9.6 x 16mm)	25mm	F1.4/F2.8/F4/F8	C-Mount	PDF
LM35HC-V	1" (12.8 x 9.6 x 16mm)	35mm	F1.4/F2.8/F4/F8	C-Mount	PDF
LM50HC-V	1" (12.8 x 9.6 x 16mm)	50mm	F1.4/F2.8/F4/F8	C-Mount	PDF

* Kowa’s new HC-V series is made for use in high vibration and high shock environments. With a design based on Kowa’s standard 1 inch HC lenses this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two way reversible nut is utilized to tightly lock the focus adjustment ring in place. Interchangeable iris plates which can be glued are used to select the F-stop.
