2/3" Anti-Shock & Vibration JCM-V Series

MACHINE VISION &

FACTORY AUTOMATION LENSES

● LM5JCM-V/LM8JCM-V/
LM12JCM-V/LM16JCM-V/
LM25JCM-V/LM35JCM-V/LM50JCM-V,

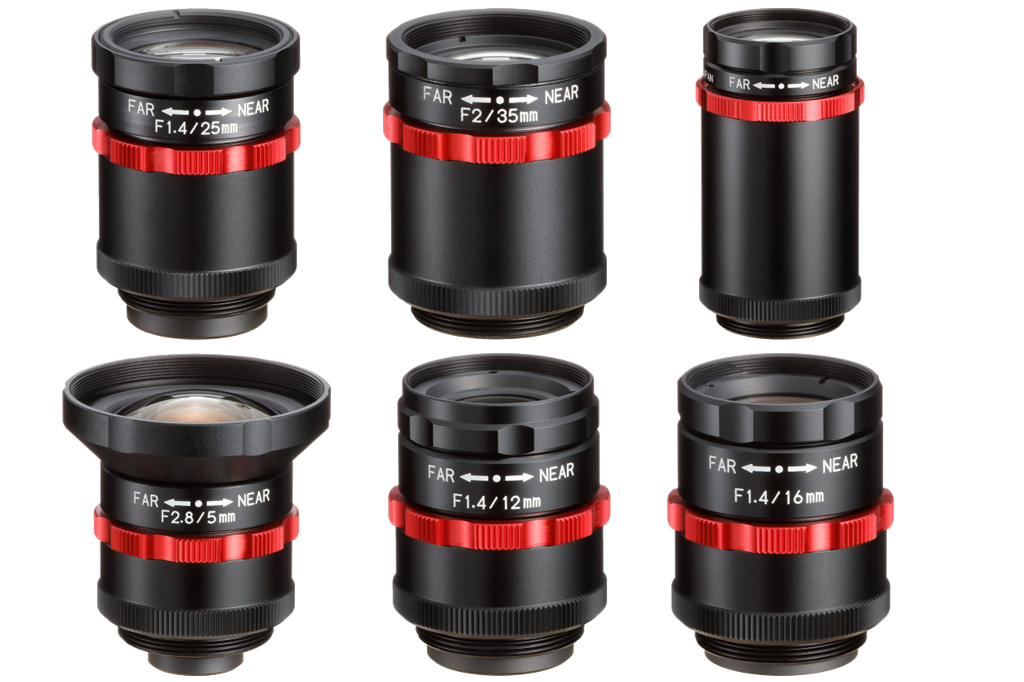

Kowa's new JCM-V series is made for use in high vibration and high shock environments. With a design based on Kowa's standard 2/3" JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.

Model Number	Lens Format	Focal length	Iris Range	Mount	Data Sheet
LM5JCM-V	2/3" (8.8 x 6.6 x 11mm)	5mm	F2.8/F4/F5.6/F8	C-Mount	PDF
LM8JCM-V	2/3" (8.8 x 6.6 x 11mm)	8mm	F1.4 / F4 / F8 / F16	C-Mount	PDF
LM12JCM-V	2/3" (8.8 x 6.6 x 11mm)	12mm	F1.4 / F4 / F8 / F16	C-Mount	PDF
LM16JCM-V	2/3" (8.8 x 6.6 x 11mm)	16mm	F1.4 / F4 / F8 / F16	C-Mount	PDF
LM25JCM-V	2/3" (8.8 x 6.6 x 11mm)	25mm	F1.4 / F4 / F8 / F16	C-Mount	PDF
LM35JCM-V	2/3" (8.8 x 6.6 x 11mm)	35mm	F1.4 / F4 / F8 / F16	C-Mount	PDF
LM50JCM-V	2/3" (8.8 x 6.6 x 11mm)	50mm	F1.4 / F4 / F8 / F16	C-Mount	PDF

* For megapixel applications requiring a sensor size of 2/3" (Φ11mm) or smaller.
* Unique mechanical design to guard against strong vibration & shock.
* Two way reversible nut is utilized to tightly lock the focus adjustment ring in place.
* All internal glass elements are glued to the inside housing to improve durability.
* Ability to choose from four interchangeable iris plates.
* This provides the flexibility of having an adjustable F-stop while maintaining the advantage of a fixed iris with no moving parts.
