2/3" 5MP Plus JC5M2 Series

MACHINE VISION &

FACTORY AUTOMATION LENSES

LM12JC5M2 | LM16JC5M2 |
LM25JC5M2 | LM35JC5M2
2/3" 5MP Plus JC5M2 Series
MACHINE VISION & FACTORY AUTOMATION LENSES

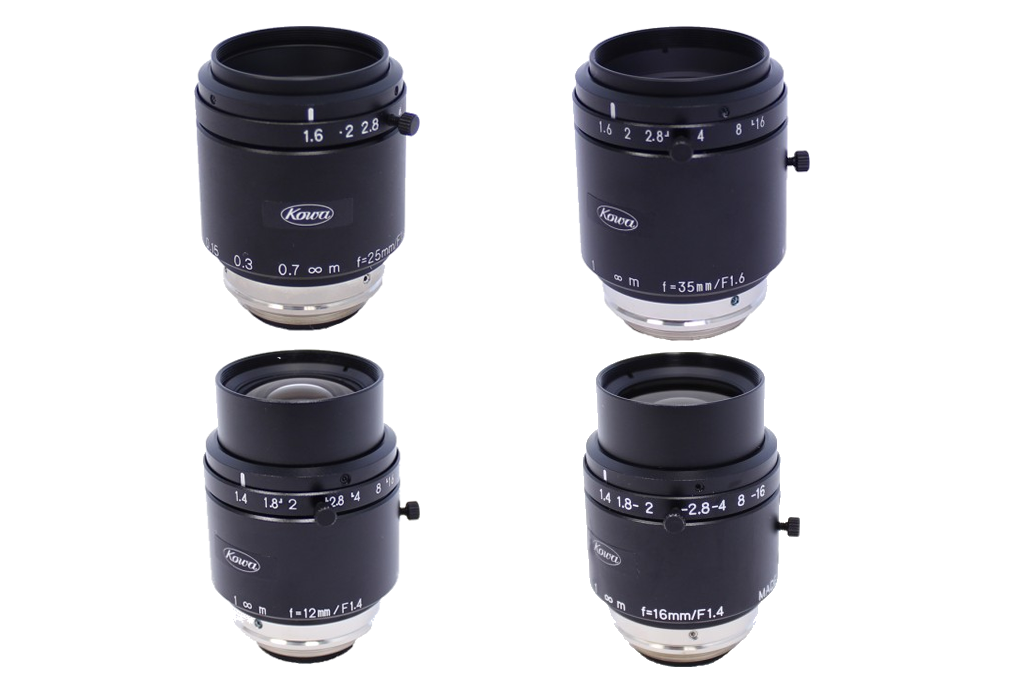

● LM12JC5M2/LM16JC5M2/
LM25JC5M2/LM35JC5M2,
Kowa's JC5M2 lens series is perfect for high-end applications that require the use of 5 megapixel cameras. With a fast F-stop, locking screws, and a compact design, these lenses provide a good value between price and performance. The JC5M2 lenses are compact, lightweight, and have a fast F-stop of F1.4.

Model Number	Lens Format	Focal length	Iris Range	Mount	Data Sheet
LM12JC5M2	2/3" (8.8 x 6.6 x 11mm)	12mm	F1.4 - F16	C-Mount	PDF
LM16JC5M2	2/3" (8.8 x 6.6 x 11mm)	16mm	F1.4 - F16	C-Mount	PDF
LM25JC5M2	2/3" (8.8 x 6.6 x 11mm)	25mm	F1.6 - F16	C-Mount	PDF
LM35JC5M2	2/3" (8.8 x 6.6 x 11mm)	35mm	F1.6 - F16	C-Mount	PDF

* Floating Mechanism Design： Kowa's floating mechanism design virtually eliminates optical abberations from close distance to infinity
* Low Distortion： High precision aspherical lens greatly reduces distortion and produces a high definition picture
* High Resolution： Creates crisp, clear images even at long distances
* Lightweight and Compact Design： Capable of fitting numerous applications
* Fast F-Stop of F1.4： Able to create extremely shallow depth of field in low lighting situations
