2/3" 10MP JC10M Series

MACHINE VISION &

FACTORY AUTOMATION LENSES

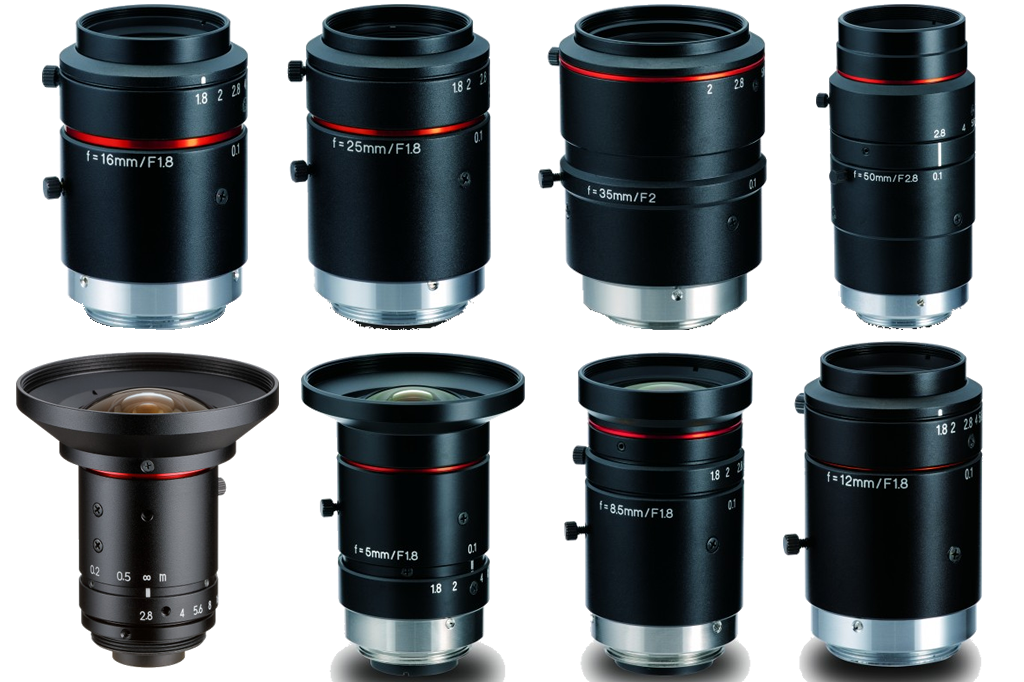

● LM3JC10M/LM5JC10M/LM8JC10M/
LM12JC10M/LM16JC10M/
LM25JC10M/LM35JC10M/LM50JC10M,
The 2/3" 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion in order to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M lens series greatly reduces chromatic aberration at any distance and maintain a high transmission from visible to NIR.

Model Number	Lens Format	Focal length	Iris Range	Mount	Data Sheet
LM3JC10M	2/3" (8.8 x 6.6 x 11mm)	3.7mm	F1.8 - F16	C-Mount	PDF
LM5JC10M	2/3" (8.8 x 6.6 x 11mm)	5mm	F1.8 - F16	C-Mount	PDF
LM8JC10M	2/3" (8.8 x 6.6 x 11mm)	8mm	F1.8 - F16	C-Mount	PDF
LM12JC10M	2/3" (8.8 x 6.6 x 11mm)	12mm	F1.8 - F16	C-Mount	PDF
LM16JC10M	2/3" (8.8 x 6.6 x 11mm)	16mm	F1.8 - F16	C-Mount	PDF
LM25JC10M	2/3" (8.8 x 6.6 x 11mm)	25mm	F1.8 - F16	C-Mount	PDF
LM35JC10M	2/3" (8.8 x 6.6 x 11mm)	35mm	F2.0 - F16	C-Mount	PDF
LM50JC10M	2/3" (8.8 x 6.6 x 11mm)	50mm	F2.8 - F16	C-Mount	PDF

* The 2/3" 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion in order to maximize performance for high-end applications.
* Floating Mechanism Design: * Kowa's floating mechanism design virtually eliminates optical abberations from close distance to infinity
* XD Extra Low Dispersion: Kowa's wide-band multi-coating effectively reduces glare and refraction
* Low Distortion: High precision aspherical lens greatly reduces distortion and produces a high definition picture
* 200lp/mm Resolution and Low Distortion: 200lp/mm resolution and low distortion will maximize performance for high-end applications
* High Transmission from visible to NIR: JC10M Series incorporates wide-band coating and a floating mechanism design to maintain a high transmission from visible to NIR
* Easy Installation: Short minimum object distance and compact design using aspherical lenses (5 models/F-5 ~ 25mm) will allow for easy installation in compact machine vision systems
* Previous Design May Have a Gold Band
