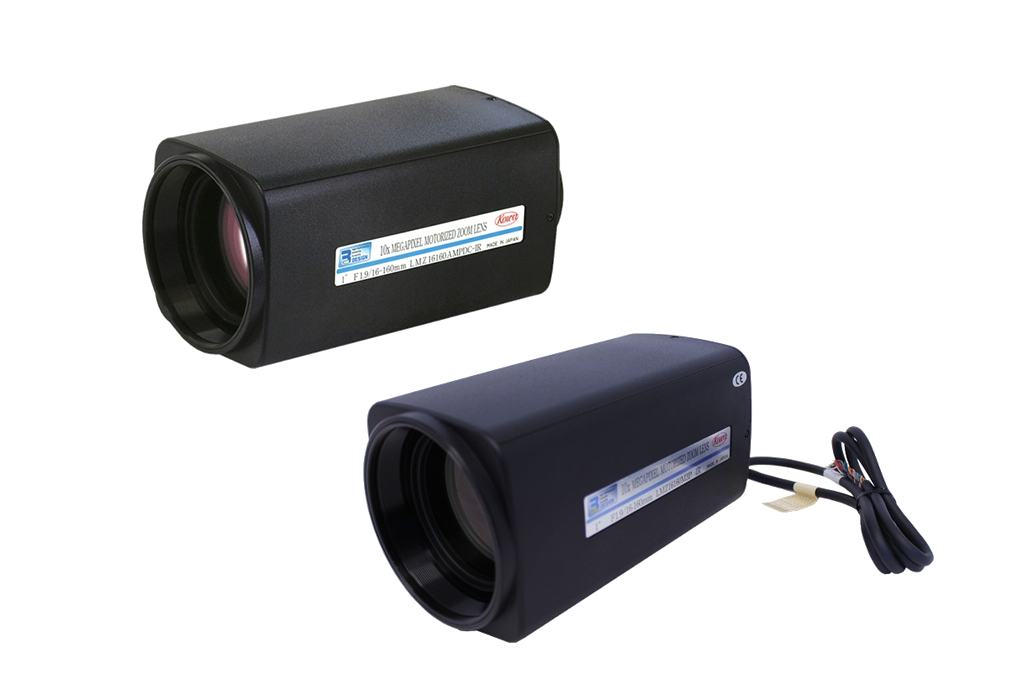

LMZ16160AMPDC-IR / LMZ16160M3P-IR
Zoom Day & Night Megapixel Lenses
● Kowa's Zoom Day and Night Megapixel lenses are IR corrected, meaning these lenses are designed to handle lighting transitions from day to night without needing to manually adjust the focus. These lenses also have a high transmission range up to 50 nanometers, making these lenses excellent for long range surveillance applications.

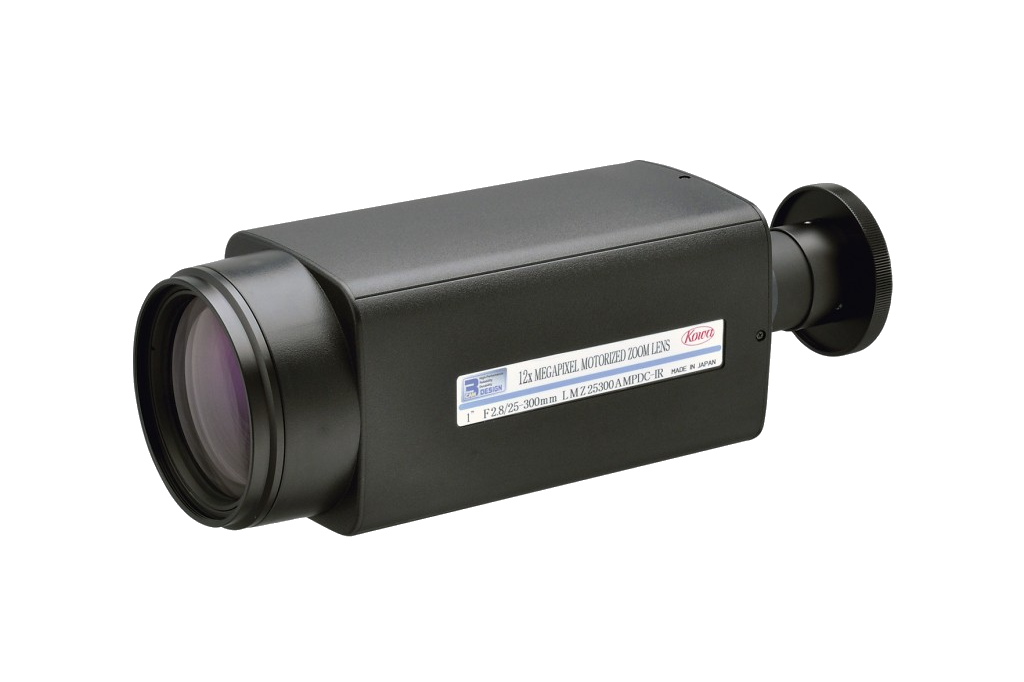

LMZ25300AMPDC-IR / LMZ25300M3P-IR
Zoom Day & Night Megapixel Lenses
● For Cameras with up to 5MP Resolution; IR-Corrected Zoom Lens; HD-Multi-Megapixel Lens; XD glass (eXtra low Dispersion); Aspherical Lenses; Preset Function

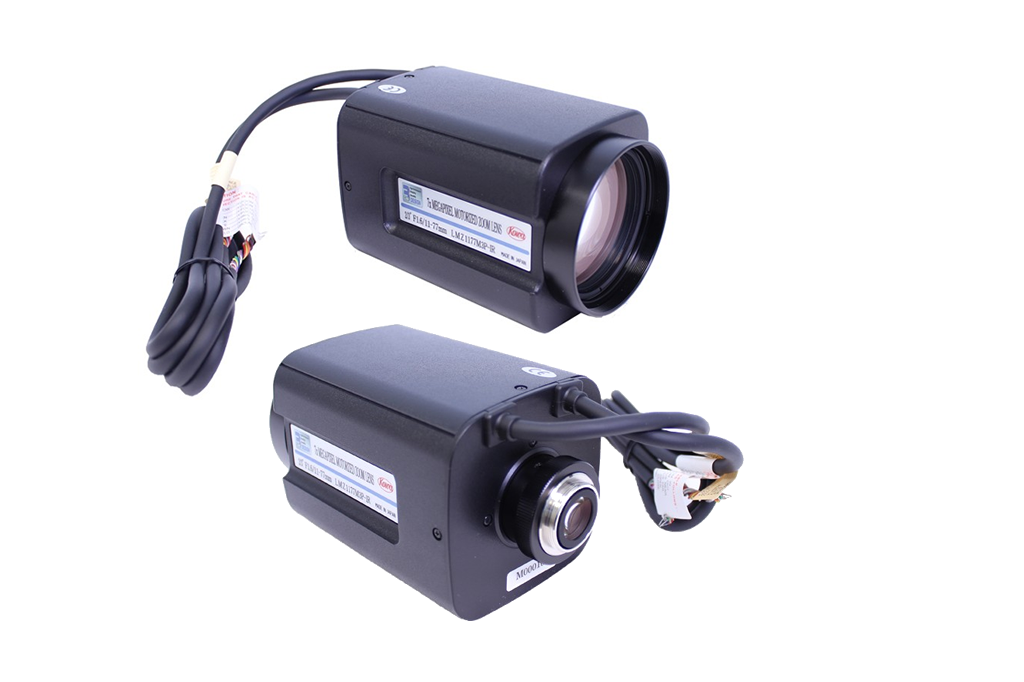

LMZ1177AMPDC-IR / LMZ1177M3P-IR
Zoom Day & Night Megapixel Lenses
● Kowa's Zoom Day and Night Megapixel lenses are IR corrected, meaning these lenses are designed to handle lighting transitions from day to night without needing to manually adjust the focus. These lenses also have a high transmission range up to 50 nanometers, making these lenses excellent for long range surveillance applications.

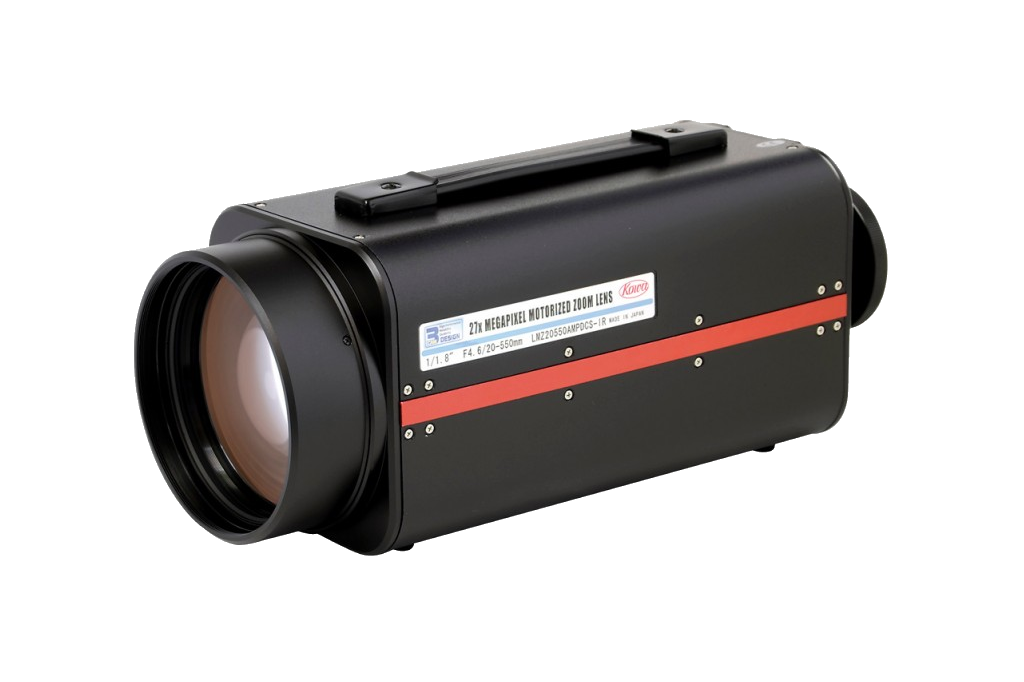

LMZ20550AMPDC-IR
Zoom Day & Night Megapixel Lenses
● The LMZ20550AMPDC-IR zoom megapixel lens is IR corrected for smooth transitions from day to night lighting conditions without having to manually adjust the focus.

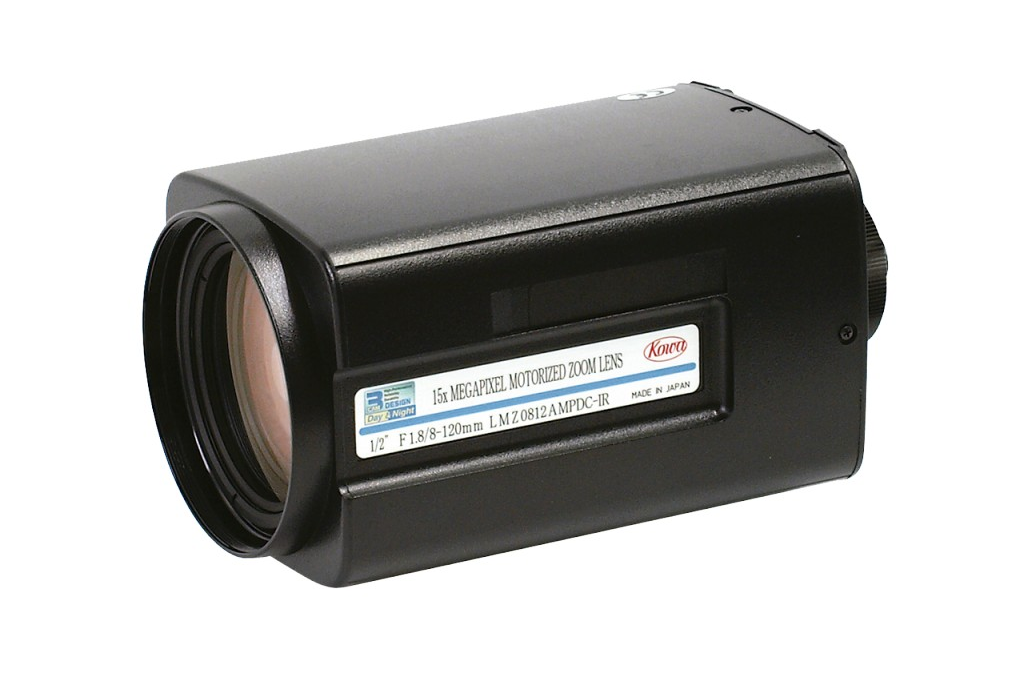

LMZ0812AMPDC-IR / LMZ0812M3P-IR
Zoom Day & Night Megapixel Lenses
● Kowa's Zoom Day and Night Megapixel lenses are IR corrected, meaning these lenses are designed to handle lighting transitions from day to night without needing to manually adjust the focus. These lenses also offer high transmission up to 50 nanometers, making these lenses excellent for long range surveillance applications.
| Model Number | Lens Format | Focal length | Iris Range | Mount | Data Sheet |
|---|---|---|---|---|---|
| LMZ16160AMPDC-IR | 1" (12.8 x 9.6 x 16mm) | 16 - 160mm (10x) | F1.9 - F22 | C-Mount | |
| LMZ16160M3P-IR | 1" (12.8 x 9.6 x 16mm) | 16 - 160mm (10x) | F1.9 - F22 | C-Mount | |
| LMZ25300AMPDC-IR | 1" (12.8 x 9.6 x 16mm) | 25 - 300mm (12x) | F2.8 - F32 | C-Mount | |
| LMZ25300M3P-IR | 1" (12.8 x 9.6 x 16mm) | 25 - 300mm (12x) | F2.8 - F32 | C-Mount | |
| LMZ1177AMPDC-IR | 2/3" (8.8 x 6.6 x 11mm) | 11 - 77mm (7x) | F1.6 - F16 | C-Mount | |
| LMZ1177M3P-IR | 2/3" (8.8 x 6.6 x 11mm) | 11 - 77mm (7x) | F1.6 - F16 | C-Mount | |
| LMZ20550AMPDC-IR | 1/1.8" (7.2 x 5.4 x 9mm) | 20 - 550mm (27.5x) | F4.6 - F360 | C-Mount | |
| LMZ0812AMPDC-IR | 1/2" (6.4 x 4.8 x 8mm) | 8 - 120mm (15x) | F1.8 - F360 | C-Mount | |
| LMZ0812M3P-IR | 1/2" (6.4 x 4.8 x 8mm) | 8 - 120mm (15x) | F1.8 - F360 | C-Mount | |
| LMZ10360AMPDC-IR | 1/1.8" (116x116x271mm) | 10-360mm (36x) | F1.9 - F360 | C-Mount | |
| LMZ14500AMPDC-IR | 1/1.8" (116x116x290.6mm) | 14-500mm (36x) | F2.9 - F360 | C-Mount |
