LM8XC | LM12XC |
LM16XC | LM25XC |
LM35XC | LM50XC

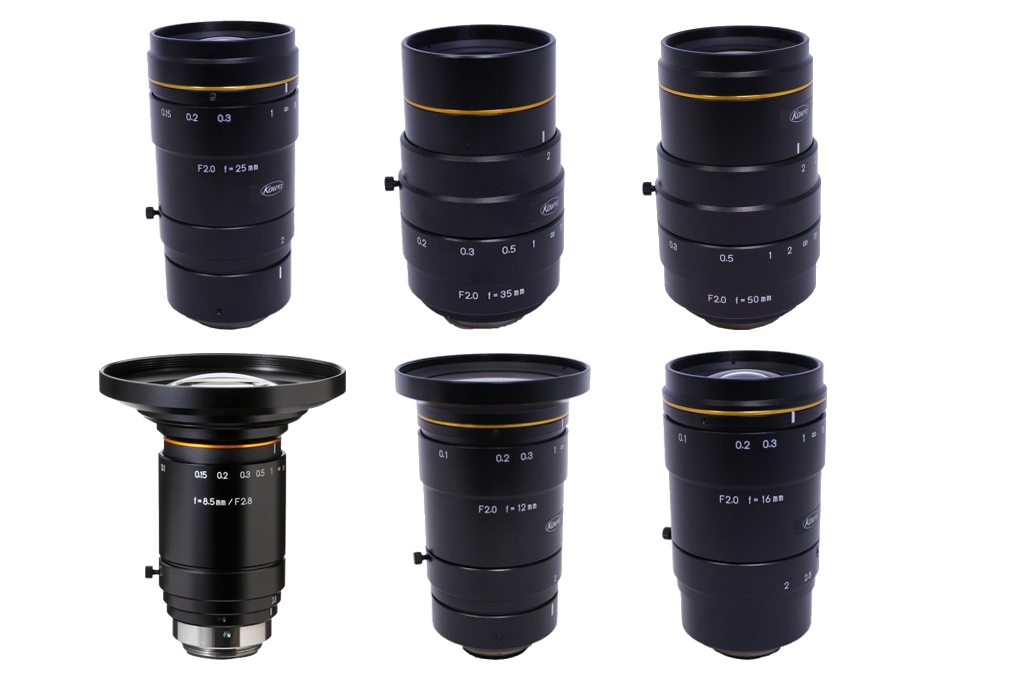

4/3" XC Series
MACHINE VISION & FACTORY AUTOMATION LENSES
● LM8XC/LM12XC/
LM16XC/LM25XC/
LM35XC/LM50XC,
The 4/3" megapixel XC lens series provides a large image format of Φ23mm(C-mount). These high precision aspherical lenses greatly reduce distortion and produces a high definition picture. XC lenses maintain megapixel resolution thoughout the entire image even if the iris is fully open. In addition, Kowa's wide-band multi-coating effectively reduces glare and refraction.
| Model Number | Lens Format | Focal length | Iris Range | Mount | Data Sheet |
|---|---|---|---|---|---|
| LM8XC | 4/3" (18.4 x 13.8 x 23mm) | 8mm | F2.8 - F22 | C-Mount | |
| LM12XC | 4/3" (18.4 x 13.8 x 23mm) | 12mm | F2.0 - F22 | C-Mount | |
| LM16XC | 4/3" (18.4 x 13.8 x 23mm) | 16mm | F2.0 - F22 | C-Mount | |
| LM25XC | 4/3" (18.4 x 13.8 x 23mm) | 25mm | F2.0 - F16 | C-Mount | |
| LM35XC | 4/3" (18.4 x 13.8 x 23mm) | 35mm | F2.0 - F16 | C-Mount | |
| LM50XC | 4/3" (18.4 x 13.8 x 23mm) | 50mm | F2.0 - F22 | C-Mount |
