QS Series (S-Mount)

MACHINE VISION &

FACTORY AUTOMATION LENSES

QS Series (S-Mount)
MACHINE VISION & FACTORY AUTOMATION LENSES

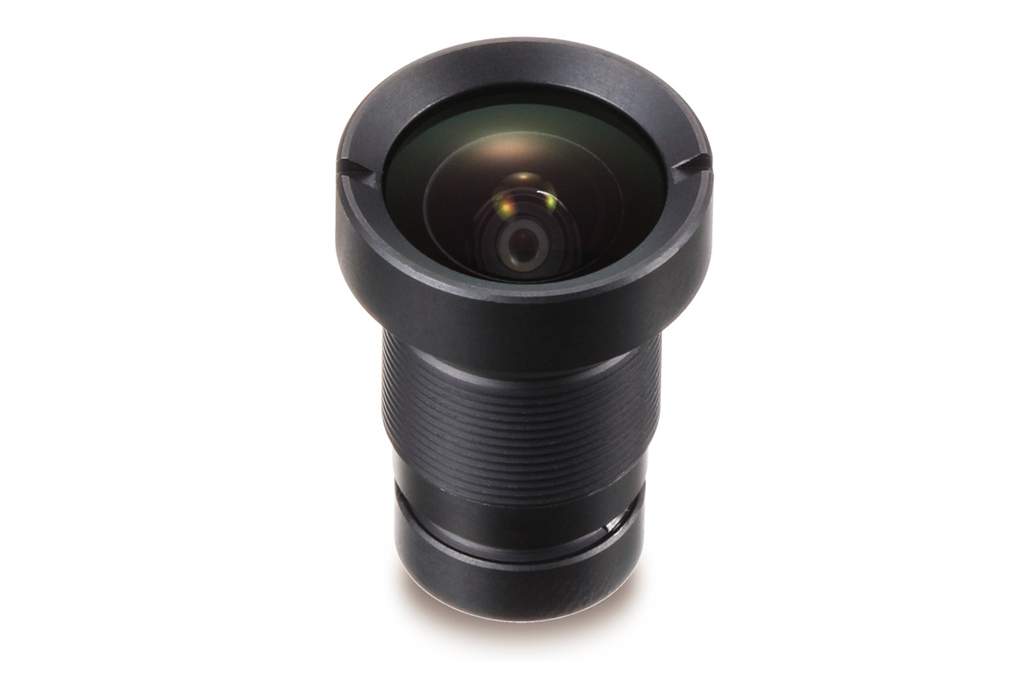

● LM3QS28/LM3QS40/LM3QS56,Introducing Kowa’s 1/2.5” wide angle megapixel S-Mount lens series.

Model Number	Lens Format	Focal length	Iris Range	Mount	Data Sheet
LM3QS28	1/2.5" (5.8 x 4.3 x 7.2mm)	3mm	F2.8	S-Mount	PDF
LM3QS40	1/2.5" (5.8 x 4.3 x 7.2mm)	3mm	F4.0	S-Mount	PDF
LM3QS56	1/2.5" (5.8 x 4.3 x 7.2mm)	3mm	F5.6	S-Mount	PDF

* Introducing Kowa’s 1/2.5” wide angle megapixel S-Mount lens series.
* Optimized for sensors with a pixel size of 3.2μm or greater.
* Focal length of 3mm with the option of a fixed F-stop at F2.8, F4, or F5.6.
* Custom F-stop can be made available by request.
* High transmission from visible to NIR wavelength range allows for versatile use in many applications.
* Produces wide field of view and very low distortion of 0.02%.
