LM5JCM | LM8JC1MS |
LM12JC1MS | LM16JC1MS |
LM25JC1MS | LM35JC1MS | LM50JC1MS |
LM75JC1MS | LM100JC1MS

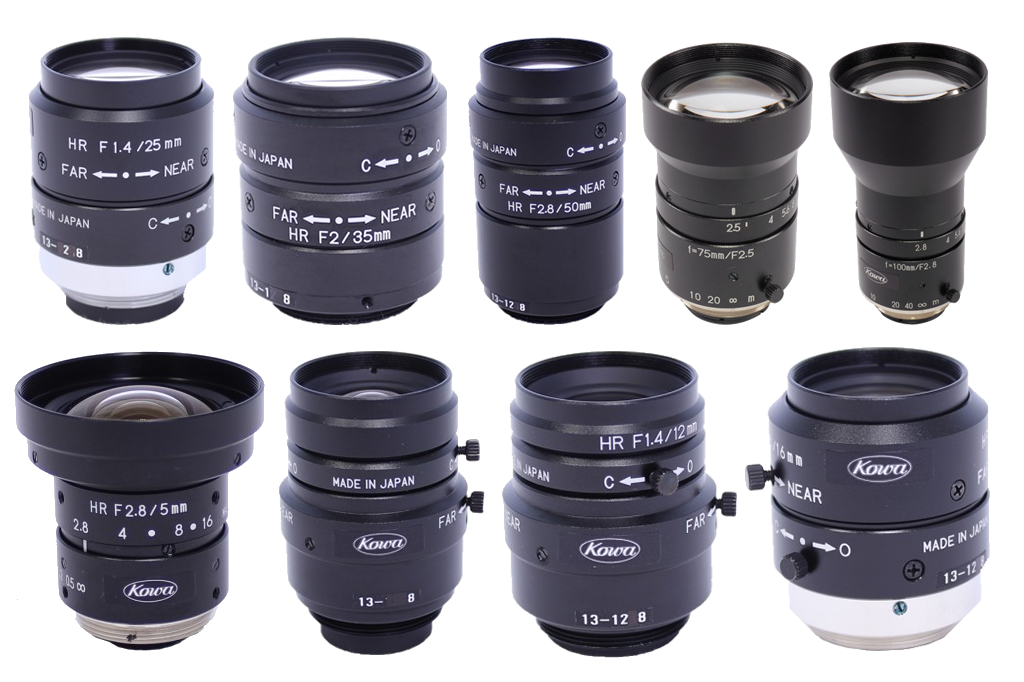

2/3" JCM Series
MACHINE VISION & FACTORY AUTOMATION LENSES
● LM5JCM/LM8JC1MS/
LM12JC1MS/LM16JC1MS/
LM25JC1MS/LM35JC1MS/LM50JC1MS/
LM75JC1MS/LM100JC1MS,
The 2/3" megapixel JCM lens series provides extremely high megapixel resolution and utilizes Kowa's floating mechanism design. With a close minimum object distance, low distortion, and compact design, these lenses are ideal for machine vision applications.
| Model Number | Lens Format | Focal length | Iris Range | Mount | Data Sheet |
|---|---|---|---|---|---|
| LM5JCM | 2/3" (8.8 x 6.6 x 11mm) | 5mm | F2.8 - F16 | C-Mount | |
| LM8JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 8mm | F1.4 - Close | C-Mount | |
| LM12JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 12mm | F1.4 - Close | C-Mount | |
| LM16JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 16mm | F1.4 - F16 | C-Mount | |
| LM25JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 25mm | F1.4 - F16 | C-Mount | |
| LM35JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 35mm | F2.0 - F16 | C-Mount | |
| LM50JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 50mm | F2.8-F22 | C-Mount | |
| LM75JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 75mm | F2.5-F22 | C-Mount | |
| LM100JC1MS | 2/3" (8.8 x 6.6 x 11mm) | 100mm | F2.8-F32 | C-Mount |
