LM25JCR
High Resolution Lenses
● The Kowa LM25JCR is a fixed focal length manual iris lens which enables the user to adjust the lens exactly to their specifications.

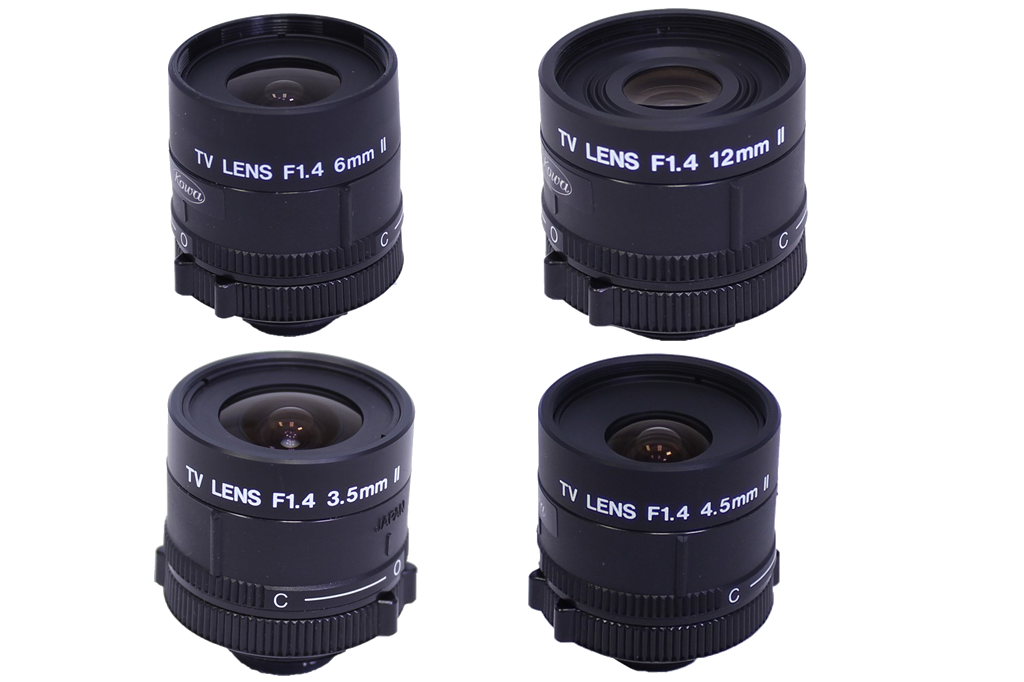

LM4NCR | LM5NCR | LM6NCR | LM12NCR
High Resolution Lenses
● LM4NCR:The Kowa NCR lenses excel in both low light and bright light conditions due to its aperture range of 1.4 to close.
● LM5NCR:The Kowa NCR lenses excel in both low light and bright light conditions due to its aperture range of 1.4 to close.
● LM5NCR:The Kowa NCR lenses excel in both low light and bright light conditions due to its aperture range of 1.4 to close.
● LM12NCR:The Kowa NCR lenses excel in both low light and bright light conditions due to its aperture range of 1.4 to close.

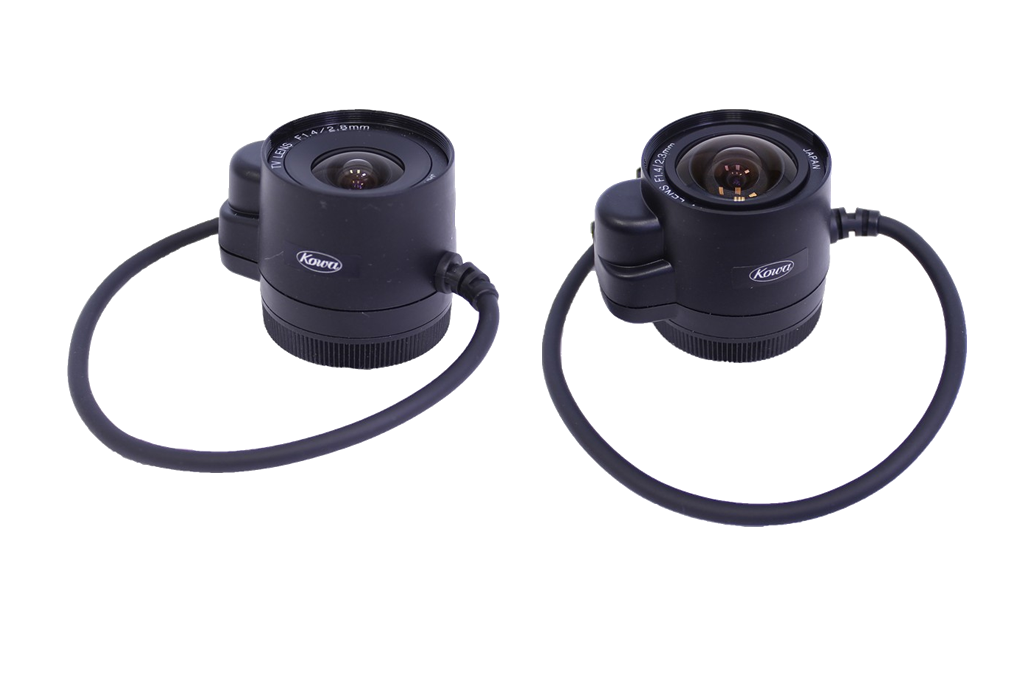

LM2.3PB | LM3PB
High Resolution Lenses
● Kowa's LM2.3PB is a fixed focus auto-iris lens ideal for surveillance applications in both low lighting and bright light conditions.
● Kowa's LM3PB is a fixed focus auto-iris lens designed for easy operation, due to the fixed focal length which eliminates the need for focus adjustments.
| Model Number | Lens Format | Focal length | Iris Range | Mount | Data Sheet |
|---|---|---|---|---|---|
| LM25JCR | 2/3" (8.8 x 6.6 x 11mm) | 25mm | F1.6 - Close | C-Mount | |
| LM4NCR | 1/2" (6.4 x 4.8 x 8mm) | 4mm | F1.4 - Close | C-Mount | |
| LM5NCR | 1/2" (6.4 x 4.8 x 8mm) | 5mm | F1.4 - Close | C-Mount | |
| LM6NCR | 1/2" (6.4 x 4.8 x 8mm) | 6mm | F1.3 - F360 | C-Mount | |
| LM12NCR | 1/2" (6.4 x 4.8 x 8mm) | 12mm | F1.4 - Close | C-Mount | |
| LM2.3PB | 1/3" (4.8 x 3.6 x 6mm) | 2.3mm | F1.4 - F360 | C-Mount | |
| LM3PB | 1/3" (4.8 x 3.6 x 6mm) | 2.8mm | F1.4 - F360 | C-Mount |
